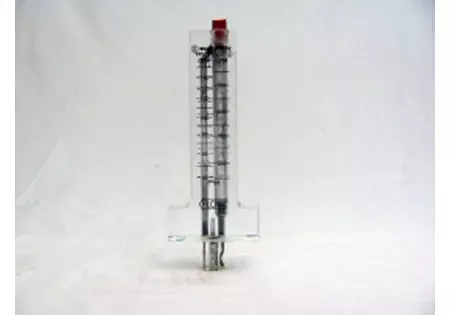

Blue White – Variable Area Flowmeters
Features
- Dual GPM/LPM scale printed on both sides of the meter.
- 2″ Pipe Size
- Flow rates from 2 to 1900 GPM (8 to 7200 LPM).
- Corrosion resistant 316SS or Teflon internal float materials.
- One piece machined acrylic body.
- Mounts to existing pipe. No unions or adapters required.
- Models for mounting on horizontal or vertical pipe.
- Mounting clamps and gasket included.
Specifications
- Pipe Requirements: …… IPS inch pipe size (ASTM-D-1785)
- Max. Psi (bar): …………… 150 PSI (10.3 bar) @ 70 F (21 C)
- Max. fluid temp.: ………. 190 F (88 C) @ 0 PSI
- Max. ambient temp.: …..14 to 110 F/ -10 to 43 C
- Full scale accuracy:………….. +/- 10%
- Power requirement: ………….. No power required
- Enclosure: ……………………….. NEMA 4X (IP56)
- Approximate shipping wt: … 1”-4” units: 1 lb. (.45 kg)
6”-8”units: 2 lb. (.91 kg) - Flow Range …………………….40-150 GPM
