Yanmar Tractor LED Head Light Assembly
Brand M Exclusive Part!
We developed this light after being completely disappointed in the headlight power of our tractor. This new kit is Much Brighter And Much Less Power Draw Than Original Incandescent Bulb!!
Sold Individually (2 required if you don’t want your tractor to look lopsided 🙂
Notes:
– Uses around 18Watts of power (a fraction of the old dim factory light) and is super bright!
– Fully waterproof & weatherproof aluminum light assembly
– Does not have a high/low position. You will only wire up to either the high or low beam position.
– Manufacturer rated 50,000 hour lifespan!

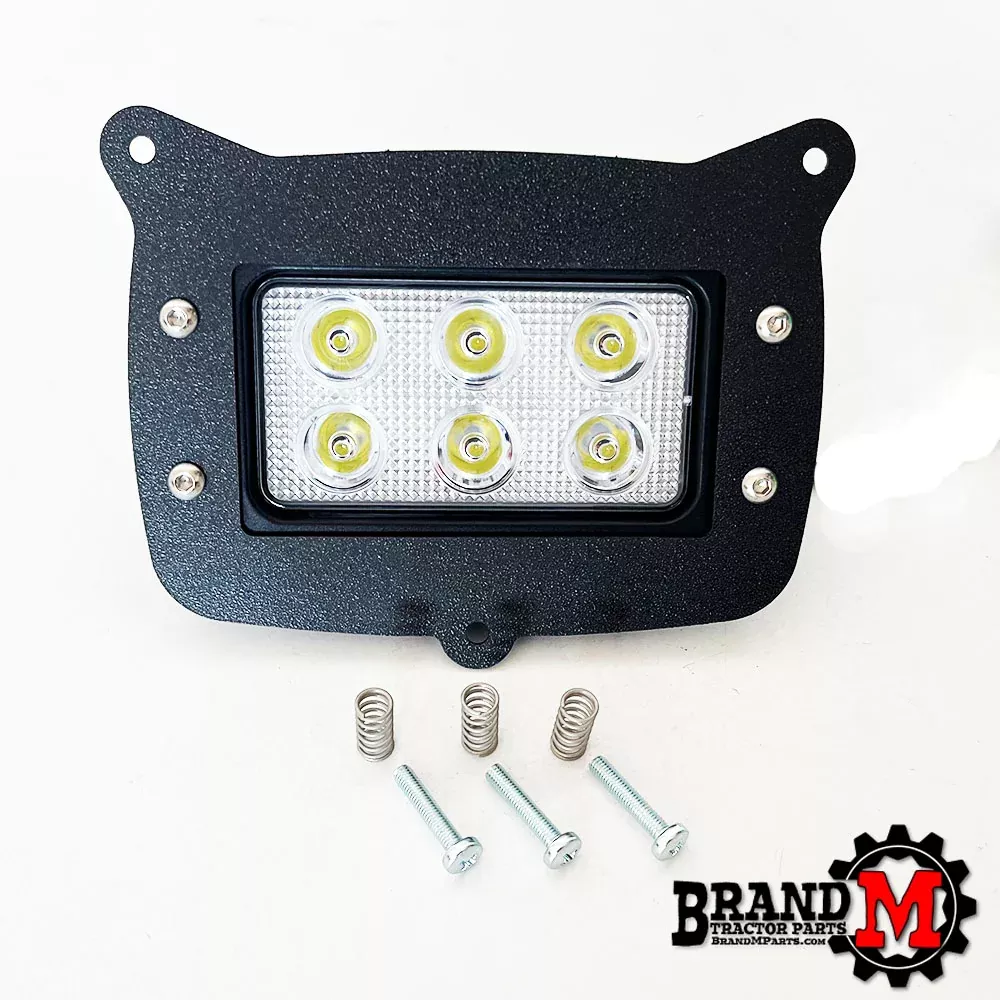

Includes:
Laser cut steel mounting bracket (Made In USA)
Super bright LED Lighting Assembly
3 Mounting Bolts
1 Plastic Fill Panel (not shown in first picture)
3 New Adjustment Springs
Includes:
Laser cut steel mounting bracket (Made In USA)
Super bright LED Lighting Assembly
3 Mounting Bolts
1 Plastic Fill Panel (not shown in first picture)
3 New Adjustment Springs
2 Permanent weatherproof wiring connectors.
Installation Instructions:
Remove your old light by removing the 3 bolts that hold the light to the hood. Unplug old light from wire harness. We recommend cutting the wiring harness off of your old light and wiring that to this new light so that you can maintain the factory plug. The red wire on our light goes to the positive wire and the black wire goes to the ground wire. Slide the two red wires (the one from the tractor and the one from our LED light) into one of the weatherproof connectors and smash the blue button completely. Slide the two black wires into the weatherproof connector and smash the blue button completely. That’s it: no soldering, no stripping wires, no crimping things. These new 3M waterproof connectors are a permanent solution. Install new light assembly using the included 3 new mounting bolts and alignment springs. Aim headlights by tightening bolts as needed.
