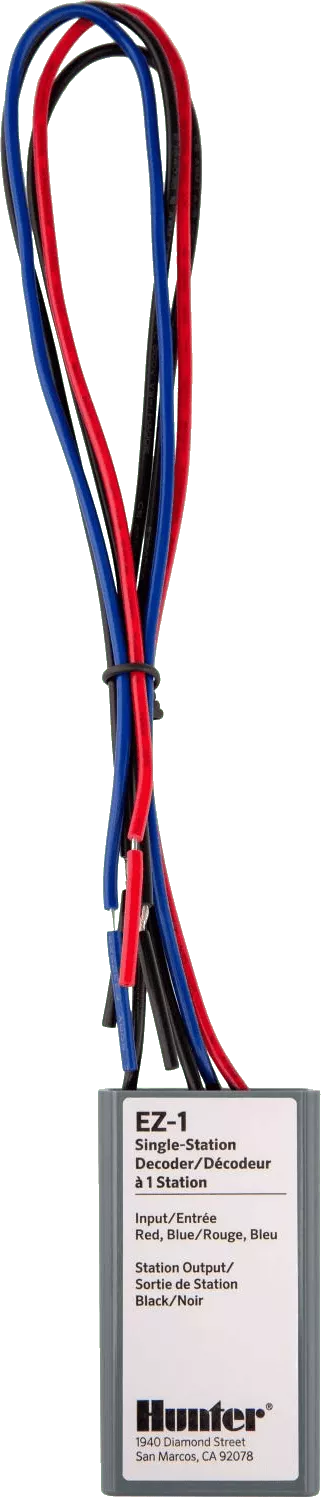

EZ Decoders are small, waterproof, and come with colour-coded wiring and a convenient LED status light. The system can also coexist with conventional output modules, allowing hybrid functionality of both direct-wired valves and decoder operations in the same controller. This technology also permits simple conversion of a conventionally wired system to two-wire using the existing wiring bundle. It’s that easy!
- No special wire or connectors required (waterproof connections are encouraged)
- No special grounding or surge arrestors required in-line to maximise time and money savings during installation
- Programmable decoders with no need to input individual serial numbers
- P/MV can activate via the two-wire path for distant systems
- EZ-1 and EZ-LR Decoders are IP68 rated, submersible
- Compatible with Hunter HCC & ICC2 Controllers with the EZ-DM Module
- Compatible with Hunter Pro-C & HPC Controllers with the PC-DM Module
Electrical Outputs:
- Two-wire path: 24 VAC, 50/60 Hz
- EZ-1 output to solenoid: 24 VAC, 50/60 Hz
- EZ-LR output to solenoid: Proprietary low-voltage, high frequency
See the chart below to understand the cable sizes you will need to use depending on the run length from your controller to your farthest solenoid.
