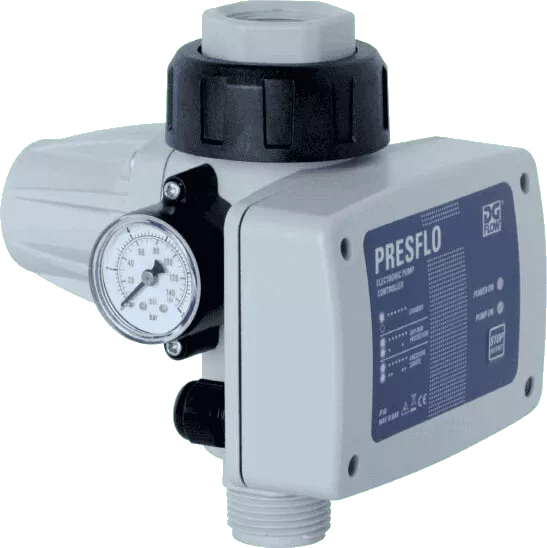

The PresFlo electronic pressure flow regulator starts/stops the pump based on demand. It is capable of satisfying the most varied of needs while guaranteeing the pump works reliably and safely. It substitutes a traditional pressure switch/surge tank system while offering reduced dimensions, no maintenance requirements, constant flow and pump protection.
*Now with Plug & Play leads.
Product Features:
- Spring loaded water accumulator guarantees high level of protection against over pressure and preventing excessive running and stopping. No need to fit air expansion tanks
- Body with built in check valve. Sturdy, techno polymer body, suitable for use in drinking water distribution systems
- Ease of use and monitoring through flashing LEDS and built in pressure gauge
- Tropicalised circuit board assures complete protection against moisture
- Systems protection against dry running and excessively frequent starts
- Available in 1.5 bar and 2.0 bar start pressure models
- Shuts down flow rate of 2 litres per minute
- Max flow rate: 200 l/min
- Voltage: 230 Volt a.c.
- Frequency: 50 Hz
- Max Current: 16 Amp
- IP Protection: IP 65
- Working temperature: 0 – 65 °C
- Connections: 25mm BPSF 3 piece union
- Working/bursting pressure: 10 Bar /> 40 Bar
- Weight: 1.45Kg
- AS4020 Approved
