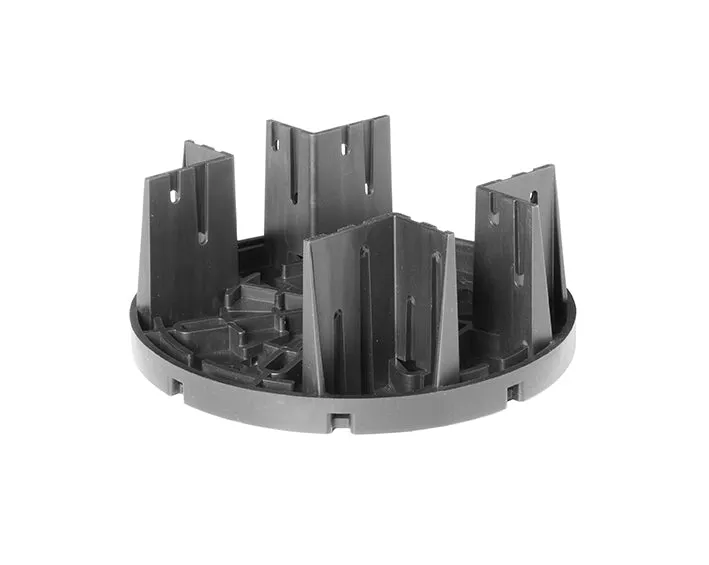

Bison Joist Saddle Attachment | JS
The Bison Joist Saddle (JS) provides a stable connection point for framing on pedestal deck systems. It can be used alone or installed on top of any Bison pedestal, and is designed to support joists in two directions for flexible layouts.
Key Features
- Universal use: Can be used alone or on top of any Bison Pedestal.
- Two-direction support: Supports 2x joists in one direction and 4x (or staggered 2x) joists in the other direction.
- Secure framing interface: Place a joist between the JS walls and fasten as specified.
Specifications
| Specification | Value | Notes |
|---|---|---|
| Model | JS | Joist Saddle Attachment |
| Height | 1/2″ | 13 mm |
| Components | Joist Saddle + Screw | Screw included for adjustable pedestal attachment |
Fastening System
- Included: (1) screw for attaching the JS to adjustable pedestals.
- Joist-to-JS fastening: Attach the joist to the JS using 8 deck screws (NOT provided).
- Important: Do not overtighten the screw when attaching the JS to an adjustable pedestal.
