Maibec — Modern Siding
Modern siding is manufactured from kiln-dried SPF (spruce–fir) and factory-coated on all six sides in a controlled environment for maximum stain absorption and retention. This provides increased protection from sun and weather. For exterior use only.
Download the technical sheet
General Specifications
- Species: Spruce–Fir (SPF), sound tight knot
- Manufacturing: kiln-dried (KD) to 12%–16% humidity
- Lengths: 6′ to 16′ random lengths (bundled)
- Factory coating: coated on all six sides
- Stain type: low-VOC, water-based stains
Installation Orientation
Horizontal or vertical installation is permitted.
Note: With the Maibec em+® installation system, a vertical installation may result in more visible staples than a horizontal installation.
Coverage/takeoff: See the calculation method under the SUPPORT tab on Maibec.com.
Finishes
Textured
- Fastening / installation systems: Regular and Maibec em+®
- Maibec URBAHN® brushed-face is referenced for 6″ em+ in the technical sheet; this page is focused on the textured finish.
Colours
Available in solid colours and natural tones.
SOLID
- 111 — White
- 399 — Black
- 010 — Ocean Grey
- 014 — Lamosite
- 015 — Timber
- 016 — Hematite
NATURAL
- 052 — Algonquin Amber
- 053 — Muskoka Brown
- 058 — Coastal Charcoal
- 059 — Ocean Spray
- 062 — Meadow Greige
- 063 — Sunkissed Beige

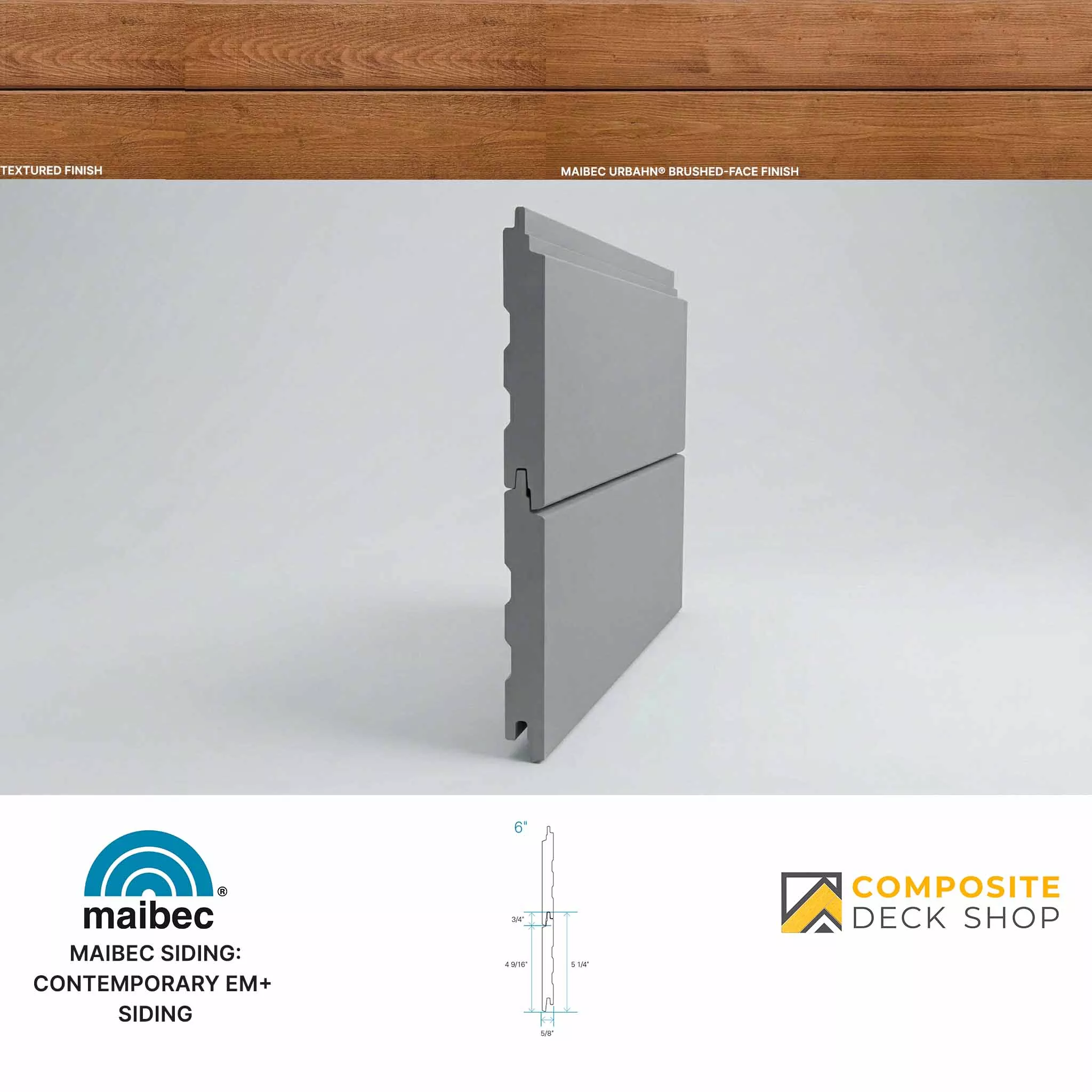

Profiles & Dimensions
Available in 6″ and 8″ widths. Actual dimensions vary by installation system.
| Nominal Width | Installation System | Finish | Random Lengths | Actual Size (T × W) | Exposed Surface | Overlap | Installation | Lead Time |
|---|---|---|---|---|---|---|---|---|
| 6″ | Regular | Textured | 6’–16′ random | 5/8″ × 5 5/16″ | 4 3/4″ | 9/16″ | Horizontal / Vertical | 1 week |
| 6″ | Maibec em+® | Textured | 6’–16′ random | 5/8″ × 5 1/4″ | 4 9/16″ | 11/16″ | Horizontal / Vertical | 1 week |
| 8″ | Regular | Textured | 6’–16′ random | 5/8″ × 7″ | 6 7/16″ | 9/16″ | Horizontal / Vertical | 1 week |
Fastening System
Regular Installation System (Nails) — for Regular profiles
- Use Maibec hot-dipped zinc galvanized ring shank nails with textured head, corrosion resistant and factory-stained to match. (Order nails at the same time as the siding.)
- A plastic hammer end cap is provided to protect the stain on nail heads.
- Estimated quantities:
- Simple nailing: 15 lbs of nails per 1,000 sq. ft.
- Double nailing: 6″ — 30 lbs per 1,000 sq. ft.
- Double nailing: 8″ — 20 lbs per 1,000 sq. ft.
Coastal installations may have specific requirements—refer to the Maibec Regular Siding or Maibec em+® Siding Installation Guide.
Maibec em+® Installation System (Staples) — for em+ profiles
- Fasten using 2″, 7/16″ crown, 16 gauge, resin-coated stainless steel SUS 304 staples.
- Estimated quantities: 3,000 staples (1 box) per 750 sq. ft.
- Also order 1 lb of 2″ nails per 1,000 sq. ft. to nail the starter course, tops of walls, and around openings.
- Recommended: Maibec em+® stapler guide (available through Maibec retailers).
- Compatible pneumatic staplers (with the em+® stapler guide): HITACHI™ (N5008 AC 1″ and AC 2″), MAKITA™ (AT1150A), SENCO™ (SNS41) and certain discontinued models (SNS50XP/SNS45XP/SNS44XP).
Warranty (Summary) — Siding (Textured Face)
Some restrictions apply—see detailed warranty documentation.
- 50 years against wood decay
- 15 years on solid stain (2 coats)
- 8 years on natural tones stain
- 5 years on labour
Wall Preparation (Key Requirements)
- Install over a standard wall with studs up to 16″ on-centre
- Sheathing: OSB or plywood
- Weather barrier: approved water-resistive barrier
- Final step: install vertical furring strips into studs (per code and Maibec requirements) to create a continuous air gap, especially when used with ventilation and drainage accessories.
Complementary Accessories
- Ventilation & drainage accessories: ventilated strips with a perforated 50% open pattern to support airflow/drainage and help prevent rodents and certain insects from entering behind the wall.
- Metal corners: inside and outside corners available in 10′ lengths.
